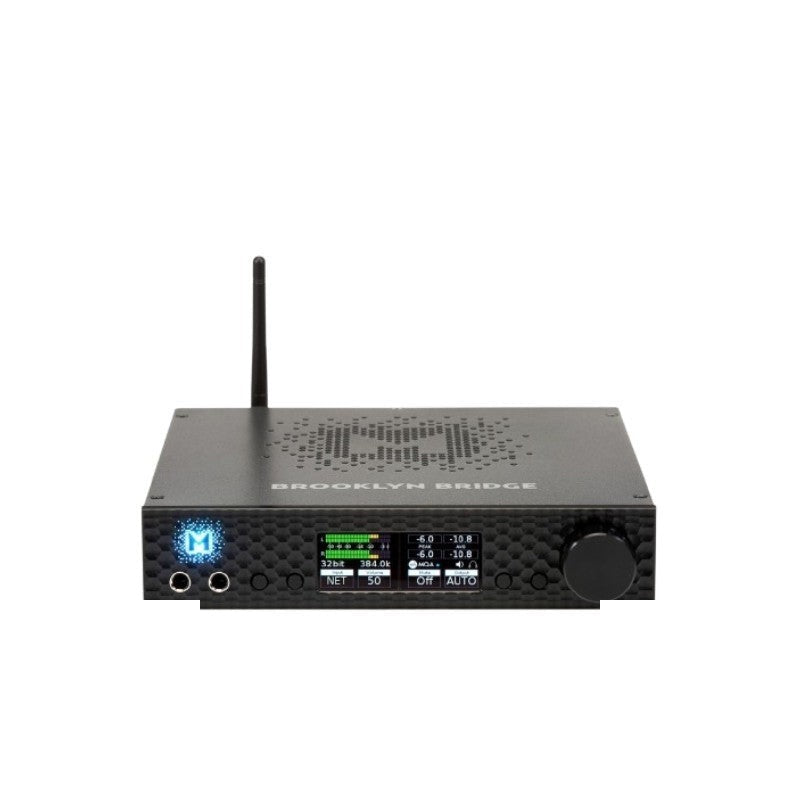

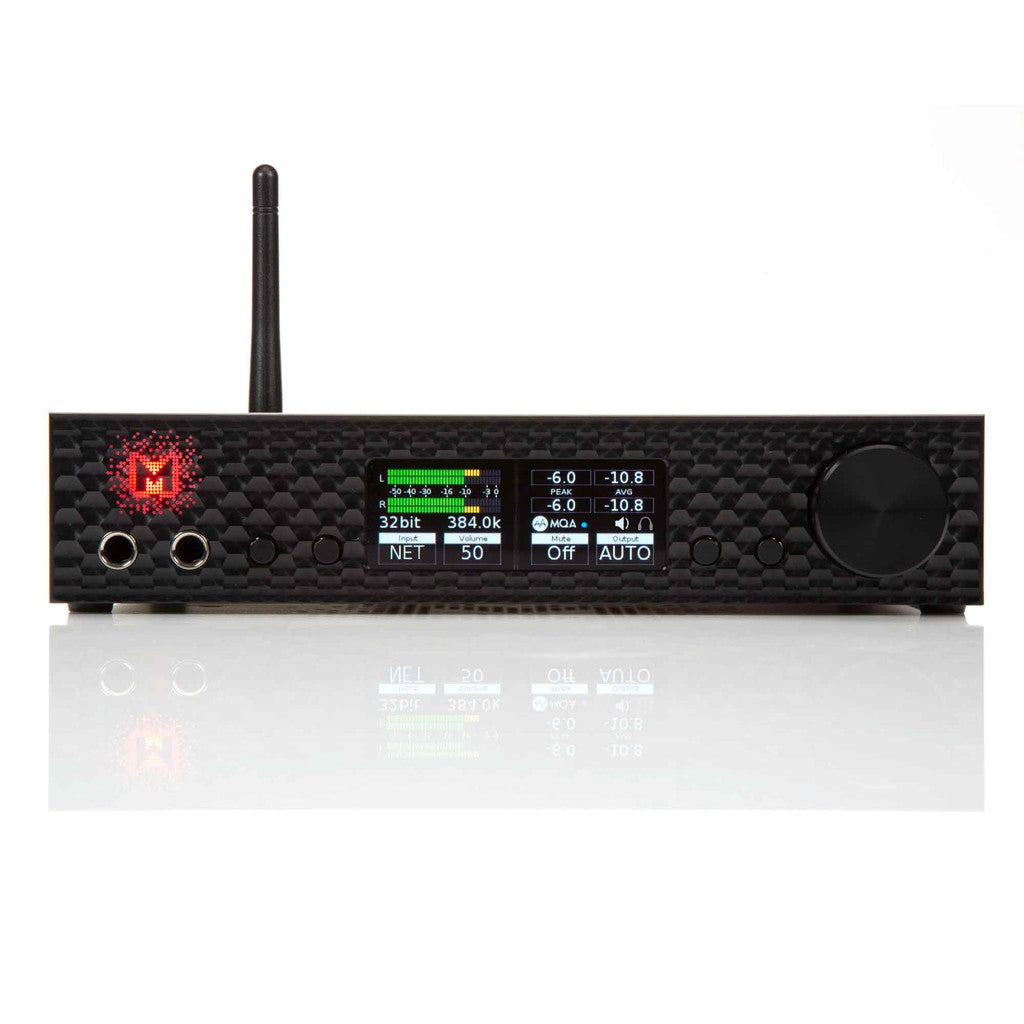

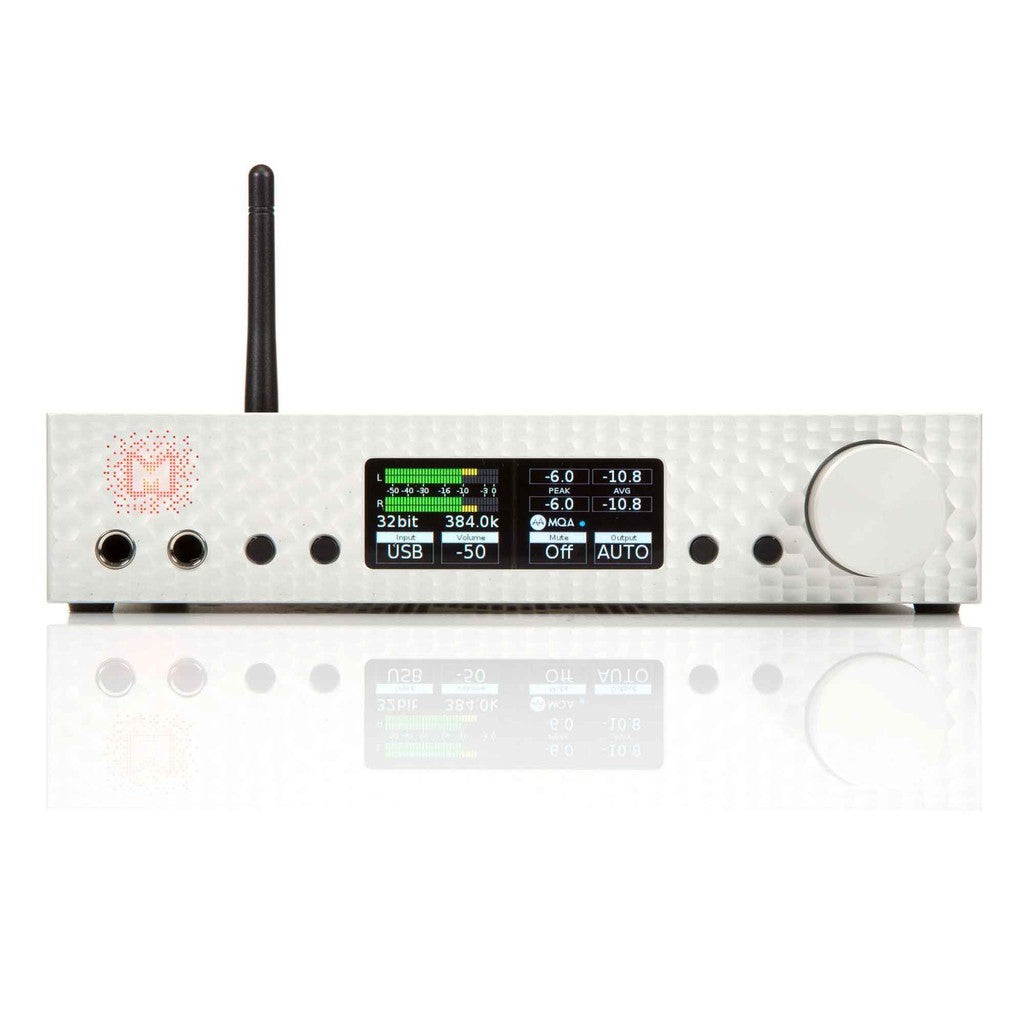

Mytek Brooklyn Bridge

Overview

Mytek’s Brooklyn Bridge takes the sound we love from the Brooklyn DAC+, adds network streaming (WiFi and ethernet) and USB host capabilities to fit perfectly in a modern music system.

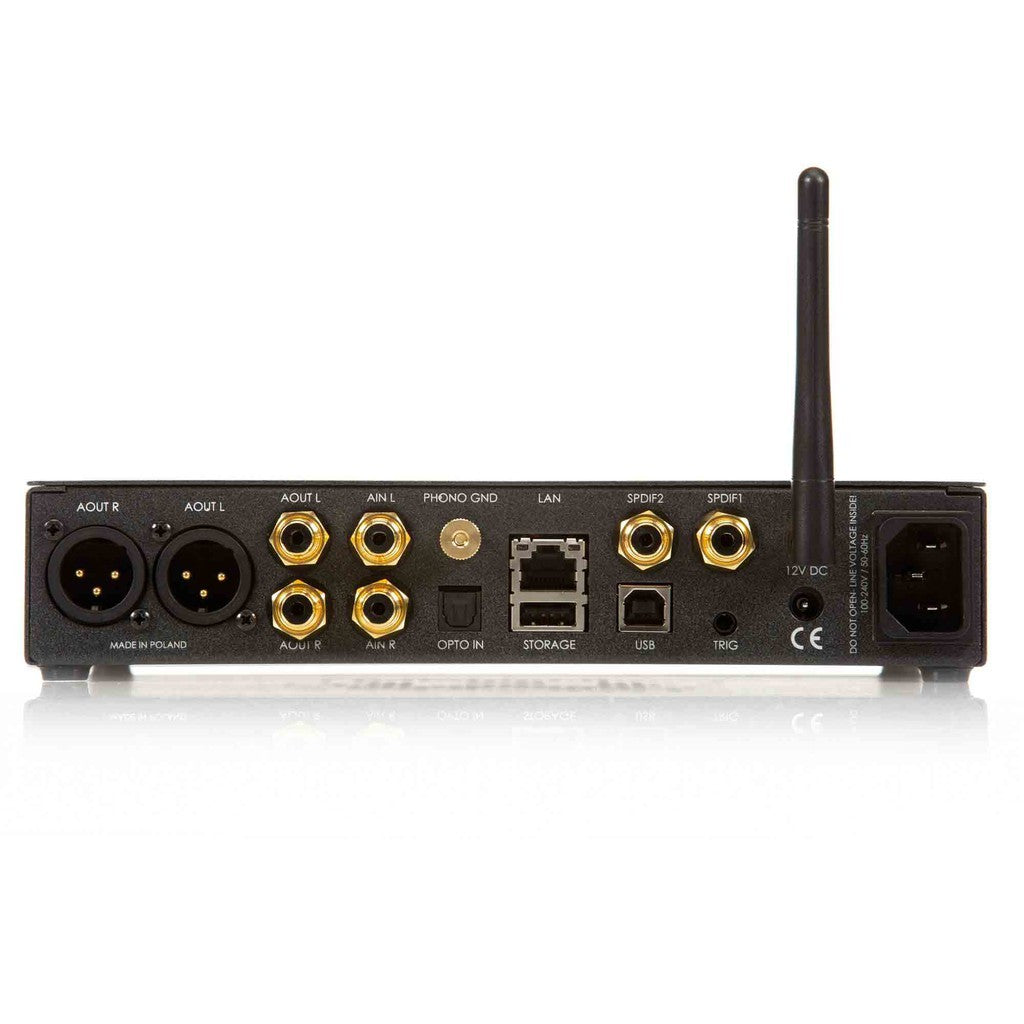

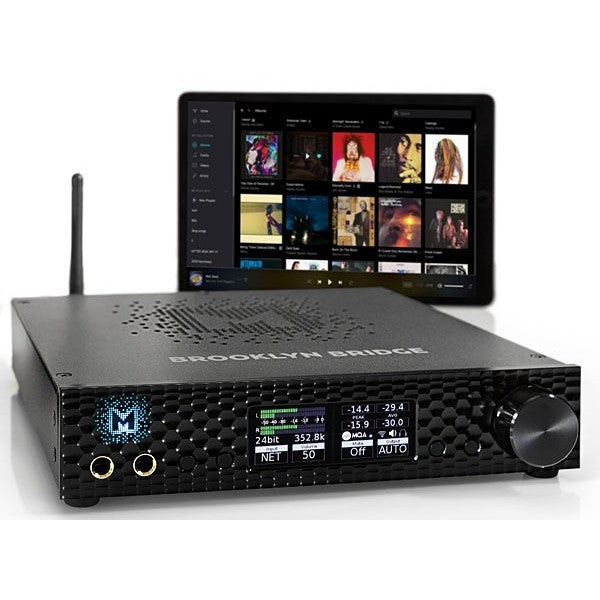

The Mytek Brooklyn Bridge is identical to Brooklyn DAC+ in terms of audio circuits and performance but has the addition of a built-in Network Streamer. AES/EBU digital input is replaced with an ethernet network connector, a WiFi antenna and a USB port for external music hard drive. Just add a tablet (iP.d or Android) for a complete music system to stream Tidal MQA, Qobuz Hi-Res or other streaming services or play local files connected to the Brooklyn Bridge USB port. Roon requires additional Roon Core. Like in the Brooklyn DAC+ there is a line and phono analog preamplifier and a reference headphone amplifier.

Key specifications

• CONVERSION: up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB DR, ES9028PRO chipset
• MQA HI-RES DECODER: built in certified hardware MQA™ decoder, full unfold to original sample rate
• NETWORK INPUTS: Ethernet CAT5 (PCM up to 24/192k, DSD64 , WiFi (PCM up to 24/192k, DSD64)
• CLOCK: “Mytek Femtoclock Generator™” 0.82ps internal jitter.
• ANALOG OUTPUTS: RCA, balanced XLR, simultaneous, 75 Ohm impedance
• BUILT-IN ANALOG PREAMP: Line level input or Phono M/M, M/C input, relay controlled.
• REMOTE: Included, universal remote capable
